It’s all about the concept, construction and flexibility of İSTANBUL PACK’s machine range!

Building Groups Of The Machine

1. Film in feed (bottom-forming)
2. Forming station
3. Loading zone
4. Product
5. Film in feed (top non-forming)
6. Sealing station
7. Cross cutting zone
8. Longitudinal cutting zone
9. Film trim removal
10. Pack discharge

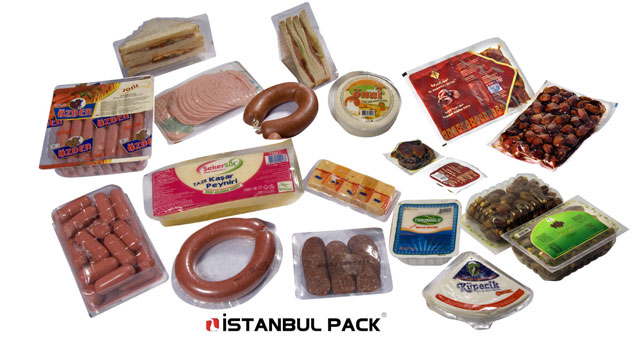

Packaged Products


TR - ALP 15 S TR - ALP 20 M TR - ALP 25 L

Thermoformer “TR-ALP 15 S” Small and Simple. It offers excellent value for a small investment.
TECHNICAL DATA
Capacity    6-8 cycles / min.
Cut-off Length    150 mm - 250 mm
Film Width    200, 285, 300, 320, 360 mm
Web Material    PA+PE / PET+PE / PVC+PE / XPP
Control Panel    Omron Coloured Touch Screen
Advance System    Servo Motor
Max. Frame Length    4,000 mm
Max. Forming Depth    100 mm
OPTIONS

Vacuum pumps (63, 100, 160, 200, 250 m3/h)

    Automatic vacuum test control system
    Modified atmosphere packaging (MAP)
    Running of rigid and flexible films
    Simple die change with slide-in system
    Simple operation
    Small space requirement
    Production data acquisition and storage
    Special water holding filter for liquid/brine products
    Comprehensive safety systems
    Printed film registration – top film
    Durable stainless steel knives construction
    Corrosion-resistant stainless steel film transport chain
    Centralized brush type chain lubrication system
    Durable stainless steel feet constructioz

Thermoformer “TR-ALP 15 S” Small and Simple. It offers excellent value for a small investment.
TECHNICAL DATA
Capacity    6-8 cycles / min.
Cut-off Length    150 mm - 250 mm
Film Width    200, 285, 300, 320, 360 mm
Web Material    PA+PE / PET+PE / PVC+PE / XPP
Control Panel    Omron Coloured Touch Screen
Advance System    Servo Motor
Max. Frame Length    4,000 mm
Max. Forming Depth    100 mm
OPTIONS

Vacuum pumps (63, 100, 160, 200, 250 m3/h)

    Automatic vacuum test control system
    Modified atmosphere packaging (MAP)
    Running of rigid and flexible films
    Simple die change with slide-in system
    Simple operation
    Small space requirement
    Production data acquisition and storage
    Special water holding filter for liquid/brine products
    Comprehensive safety systems
    Printed film registration – top film
    Durable stainless steel knives construction
    Corrosion-resistant stainless steel film transport chain
    Centralized brush type chain lubrication system
    Durable stainless steel feet construction

Thermoformer “TR-ALP 15 S” Small and Simple. It offers excellent value for a small investment.
TECHNICAL DATA
Capacity    6-8 cycles / min.
Cut-off Length    150 mm - 250 mm
Film Width    200, 285, 300, 320, 360 mm
Web Material    PA+PE / PET+PE / PVC+PE / XPP
Control Panel    Omron Coloured Touch Screen
Advance System    Servo Motor
Max. Frame Length    4,000 mm
Max. Forming Depth    100 mm
OPTIONS

Vacuum pumps (63, 100, 160, 200, 250 m3/h)

    Automatic vacuum test control system
    Modified atmosphere packaging (MAP)
    Running of rigid and flexible films
    Simple die change with slide-in system
    Simple operation
    Small space requirement
    Production data acquisition and storage
    Special water holding filter for liquid/brine products
    Comprehensive safety systems
    Printed film registration – top film
    Durable stainless steel knives construction
    Corrosion-resistant stainless steel film transport chain
    Centralized brush type chain lubrication system
    Durable stainless steel feet construction
